Product Information

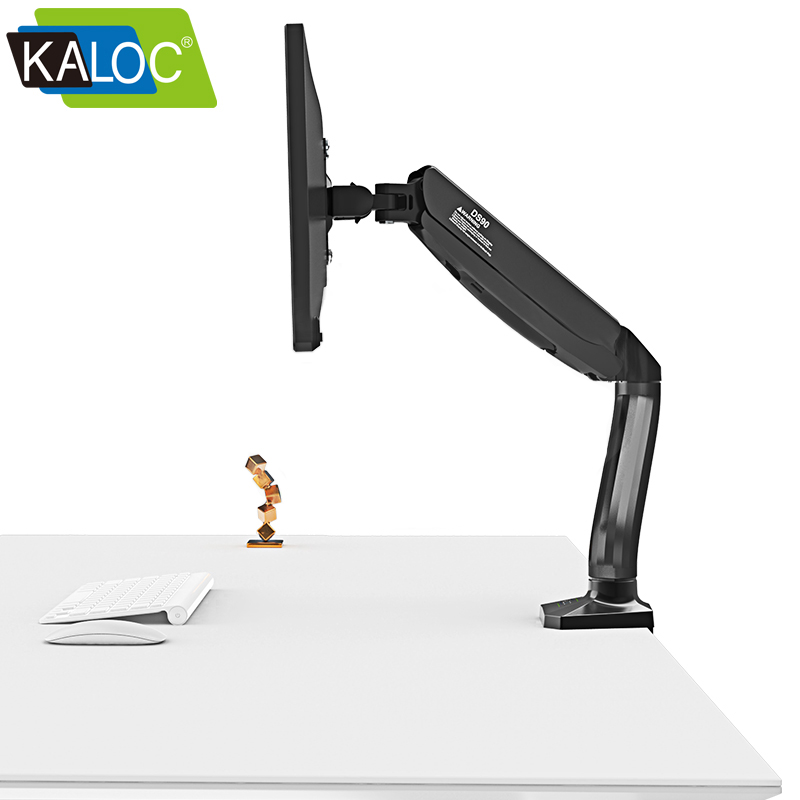

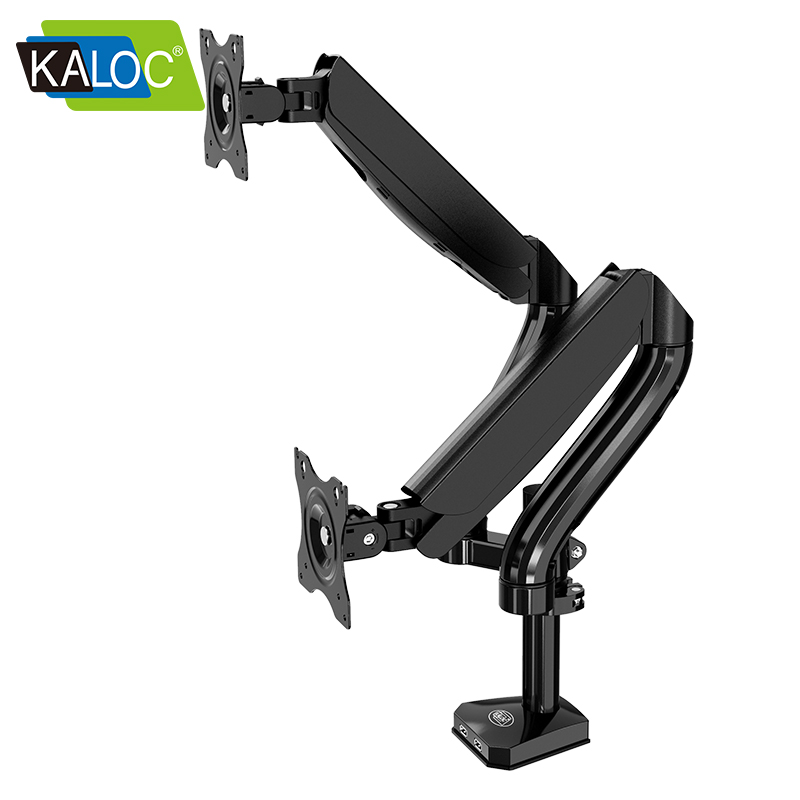

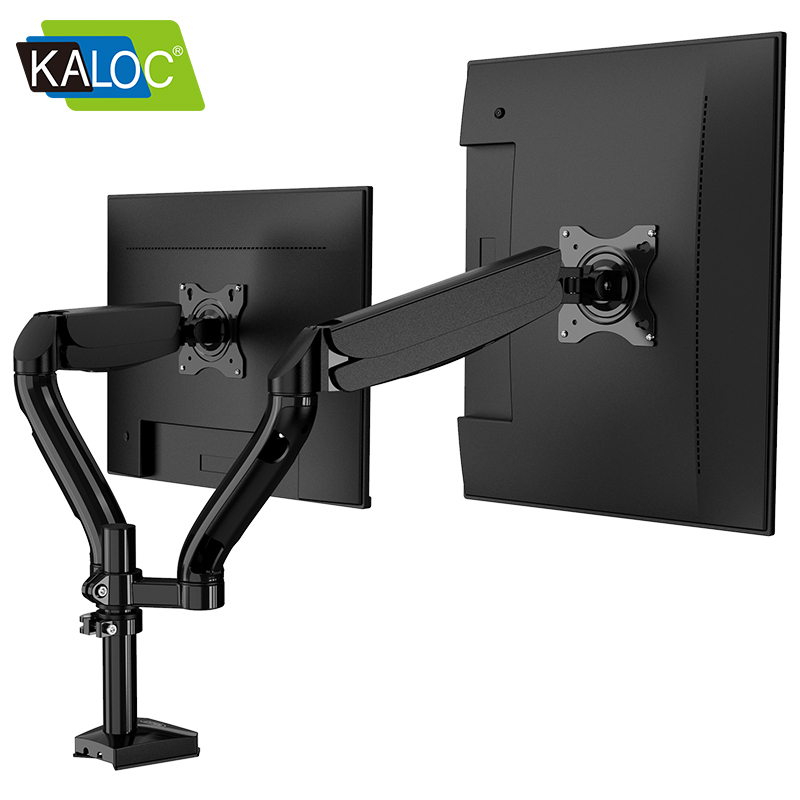

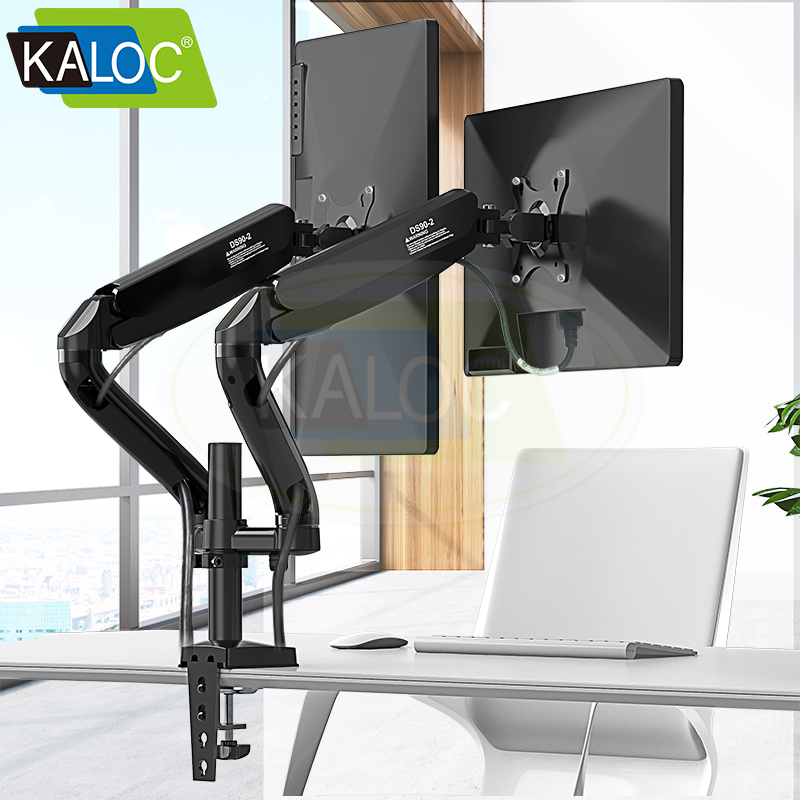

The DS90-2 is a modern, light-weight yet durable monitor mount built with the latest technology that is capable to hold up to 18kg of two monitor panels. The sophisticated black color is easily blending into a vast variety of working environments or interior furniture. It is available with multiple arm movements such as moves up, down, stretch forward, and backward which comes at ease for the most ergonomic setup. Users able to access hassle-free of 360° monitor rotation, -50°~ +35° tilt angle, 180° swivel, and vertically height adjustments. All cables could be aligned along with the compartment for tidying and safety reasons.
PRODUCT HIGHLIGHTS
– Innovative design with extended height
– Gas-strut arm make counterbalance setup at ease
– Multiple movements for maximum ergonomic setup
– Compartment for cable management
– Both grommet and desk clamp mounting are available
– Support monitors’ weight from 2-9kg for each arm
Information
| Weight | 5 kg |
|---|---|
| Dimensions | 70 × 24 × 14 cm |
| Brand | Kaloc |
| Material | Aluminum |
| Warranty | 3 Years |
| Color | Black |
Dimensions
Specifications
Technical Data
| Type | Desk Mount |
| Material | Aluminium, Metal, Plastic |
| Recommended Screen Size | 17” – 32” |
| Rated Weight Capacity | 2 - 9 kg (each arm) |
| VESA Standard (mm) | 75x75, 100x100 |

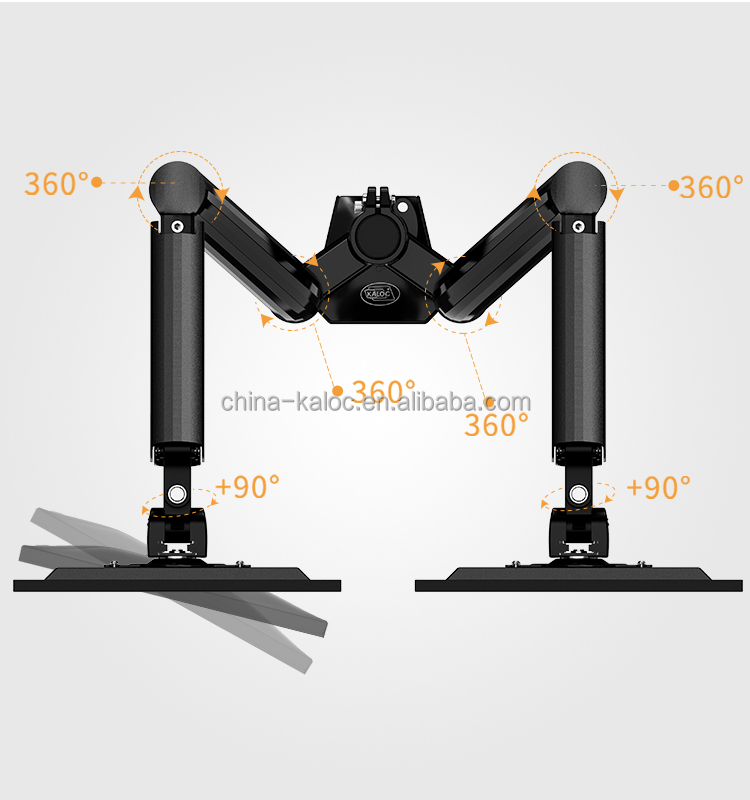

| Tilt | -50°~+35° |
| Swivel | -90°~+90° |
| Rotate | 360° |
| Arm Extend | Max. 420 mm |
| Height | Max. 527 mm |
| Clamp Thickness | 15-95 mm |
| Clamp Clearance | Min. 60 mm |
| Grommet/ Hole Mount Diameter | 10~50 mm |
| Height Adjustable | Yes |
| Cable Management | Yes |
| Product Dimension | 800x527x100 mm (side-by-side) |
| Package Dimension (LxWxH) | 70x24.5x13.5 cm |
| Weight | Approx. 4.6kg |
